Trilith - MC/RIAA Amplifier Fourier Analysis
MC Amplifier FFT Harmonic Spectra
Gain : 165
Output Resistance : 2 kOhm
Frequency Response : 2Hz-15MHz -3dB
Load : 220 kOhm (Passive RIAA Circuit)
Distortion THD at +/- 100mV Output : approx. 0.1%
+/- 100uV Input | +/- 2mV Input
+/- 5mV Input | +/- 10mV Input
Passive RIAA Equalisation Analysis

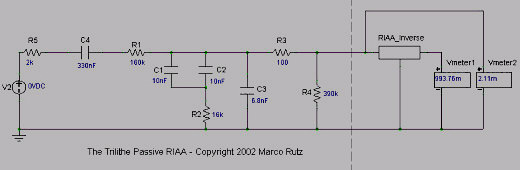

Measurement Set Up

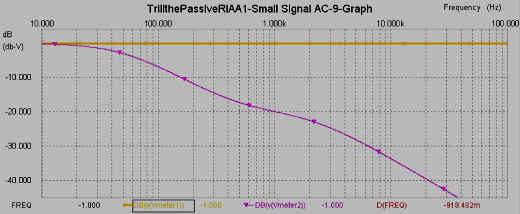

Equalisation Curve

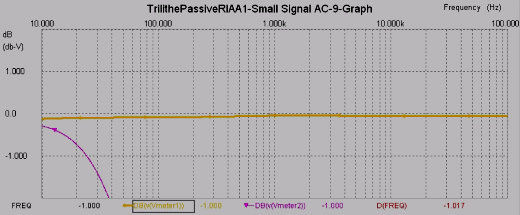

Resulting Frequency Response
RIAA Amplifier FFT Harmonic Spectra
Gain : 14
Output Resistance : 90 Ohm
Frequency Response : DC-1MHz -3dB
Load : 600 Ohm
Distortion THD at +/- 1.4V Output : approx. 0.05%
+/- 1mV Input | +/- 100mV Input
