Cromlech - Non Oversampling SPDIF DAC

Introduction

Over the years I have modified several players to get good sound from CDs. While I succeeded to improve the sound I always missed some "naturalness" down to the last detail with CDs. Then I read about non-oversampling DACs which may sound more alive and realistic. Especially the Article by Ryohei Kusunoki  discusses the background of non-oversampling topology in great detail.

Searching for simple non-oversampling DAC topologies I found a number of approaches:

• Ryohei Kusunoki - The classical CS8412 & TDA1543 DAC
• Giorgio Pozzoli - The TNT Convertus minimalist DAC
• Thorsten Loesch - The Adagio DAC based on the CS8412 & TDA1541
• Richard Murdey - The twenty part Attack DAC
• Yury Gelgor - A balanced non-oversampling CS8414 & AD1865 DAC



Cromlech DAC

Some audio enthusiasts think the TDA1543 sounds a little bit rough and others think the TDA1541 sounds too gentle. Concerning the AD1865 DAC many audiophiles state that this DAC is an excellent choice. However,  I settled on the TDA1543 for my own use.

Interfacing the TDA1543 with the Digital Receiver CS8412 is easy unlike with other DAC chips. Of course, the TDA1543 chip may the limiting factor but I am convinced, well integrated this chip is still an excellent sonic choice.

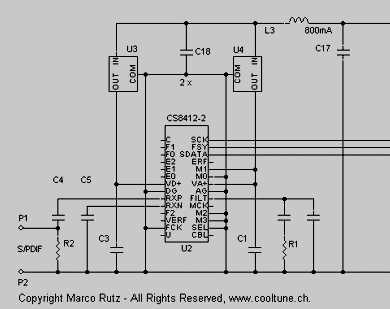

Cromlech DAC Part 1 : S/PDIF Receiver

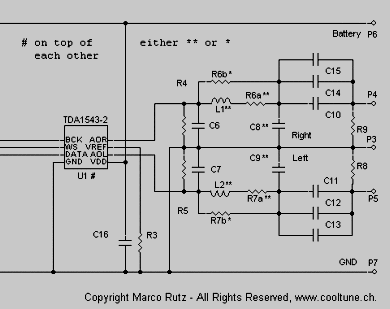

Cromlech DAC Part 2 : DAC, I/V and Filter * or **

Overview

• Block Diagram 1a

SPDIF DAC

• Complete Schematic Diagram 1a
• Printed Circuit Board 1a for Filter *
• Printed Circuit Board 1a for Filter **
• Bill of Materials 1a

Battery Supply Unit

• Schematic Diagram 1a
• Printed Circuit Board 1a
• Bill of Materials 1a
